CopterX CX 450SE V2 6ch 3D Carbon Fiber Barebone Kit
[CX-450SEV2KIT]

CopterX CX 450SE V2 6-channel 3D CCPM R/C Helicopter Barebone Kit (Carbon Fiber Main Frame and Stabilizers)
(for Intermediate to Advanced Level Pilots)

Now You Can Pick the Servos, Motor+ESC, Gyro & Li-Po Together at Very Discounted Prices!!

CX450 SE V2 Descriptions:
CopterX CX450SE V2 Barebone Edition arrived with 95% Assembled. Its design is very similar to the Align T-Rex 450SE V2 which represents the state of the art in micro helicopter technology, utilizing the latest design techniques and highest material quality, aluminum parts are anodized in a pleasant blue color. This kit is for the flyers who want uncompromised performance and quality. Almost all spare parts of the CX450SE V2 are compatible with the Align T-Rex 450SE V2.


1. New CNC carbon frame improve the rigidity and perfect for 3D flying.
2. Changing servo location to CCPM version, new aluminum parts for prompt, precision actions.
3. SSG battery mounting plate connects to main frame. It makes the center of gravity closed to rotor blade, reduced the correction when the heli rotation rolling.
4. Rigid CNC aluminum rotor head for precision and smooth movements.
5. Using Ball and Hiller two systems mixing control. Through simple structure of Ball control system, power-saving of Hiller system and CCPM control, can simultaneously control 3 servo for AILE, EVLE, PIT 3 actions. This CCPM control system is great for 3D flying control and extending life cycle of servos.
6. New streamlined tail rotor blades makes the gyro more efficient.
7. New tail rotor control set, CNC control piece and movable ball link for smooth pitch travel.
8. Providing flybar weight- When normal flying, you can add the weights on flybar paddles for stable flight. When aerobatic flying, you don't need to add the weight, but you can see the flexibility of 3D actions.
9. CNC Metal tail unit and tail holder are using high rigid aluminum, falling resistance.
10. New gear ratio (4.24:1), suitable for the motor with higher KV, provide more safty.
11. Use Aluminum alloy drive pulley and tail drive pulley, high regid and wear resistance. It is efficient to reduce the rotation loss and makes more smooth.
12. All kit use stainless steel linkage ball, wear resistance, anti-oxidization.
13. Tail rotor hub made of stainless steel, very rigid.
14. Great stable and sensitive mixing lever design! Can disply the great stability and precision for 3D flight.
15. CX 450SE V2 special adjustable pitch system, hold rotation system, tail rotor drive belt system! It is a work of great originality for helicopter!

Features:

1. V2 Head Rotor Set (4mm Shaft)
2. V2 Tail Rotor Set
3. Auto-Rotation System
4. Rear Tail Servo Mount
5. Collective Pitch System
6. Tail Rotor Drive Belt System
7. Main Drive Gear with Cooling Fan
8. Professional Servo Control Lever Design

Specifications:

1. Length:650mm
2. Height:230mm
3. Main Rotor:700mm
4. Tail Rotor:150mm
5. Motor Gear:13T/11T
6. Main Gear:150T
7. Autorotation Tail Drive Gear:106T
8. Tail Drive Gear:25T
9. Drive Gear Ratio:1:11.5:4.24/1:13.6:4.24
10. Weight(without power system):354g
11. Weight(including power system):690g

Package Included:

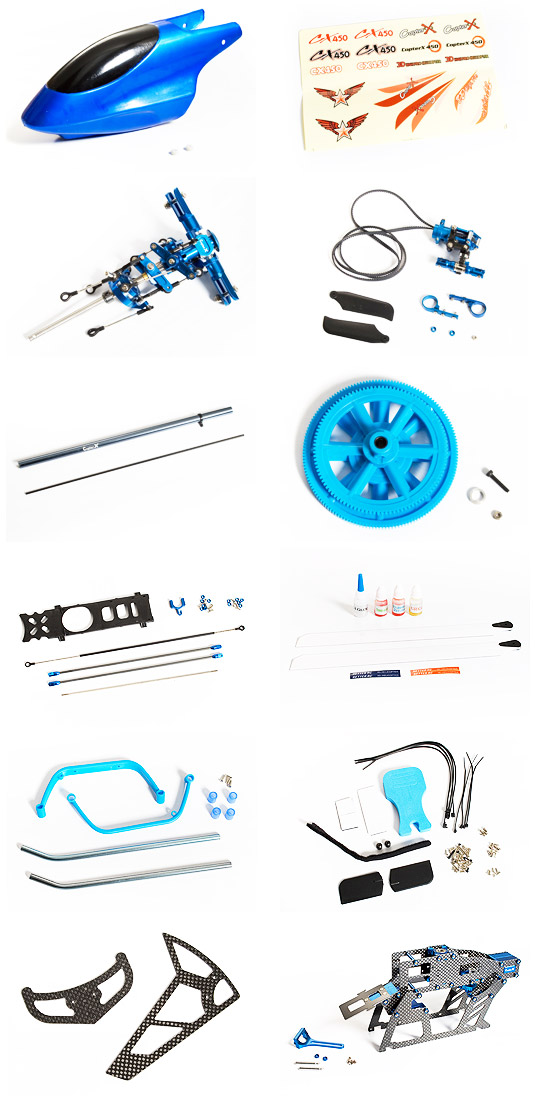

1. CopterX CX 450SE V2 Kit ONLY (95% Assembled without electric parts) X 1
