Tarot T-2D 2-Axis GoPro Brushless Gimbal (New V2)
[TAROT-TL68A00-V2]

Model No.: TAROT-TL68A00-V2

Price: US$159.90

Availability: In Stock Now! Usually Ship in 24 hours
Reviews
Order quantity:




飞越 TAROT Gopro两轴无刷云台/含云台陀螺仪 TL68A00



T-2D PTZ is TAROT company for GoPro Hero3 camera was developed, used in photographic film and entertainment, advertising and many other areas of model aircraft photography. PTZ using 6061T6 aluminum alloy full CNC precision machining, brushless direct drive motor, the overall framework designed with the idea of ​​compact, easy installation and other characteristics. Stable head structure allows the aircraft is flying at high speed state, still be able to precisely control the camera mounted GoPro Hero3 remain stable, so that the screen output to achieve the best model aircraft photographic effects.

Gopro two-axis brushless PTZ English software description and download link:


Product Features:
1, support GOPRO Hero3 video auxiliary output
2, support the supply voltage polarity protection and voltage compensation
3, support the motor drive end short-circuit protection
4, support for custom initial pitch angle
5, support sensitivity parameter adjustment and software 3D pose show
6, the support rocker rate mode and position mode
7, support Receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
8, support for remote devices: PPM/PCM/2.4G
9, the working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
10, working current: 200mA-500mA (power supply voltage and the motor related)
11, the working environment temperature: -15 ℃ ~ 65 ℃
12, the processor: Dual 32-bit high-speed ARM core processor
13, the sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
14, the maximum angular rate: 2000 ° / sec
15, the maximum acceleration: 16g
16, the control frequency: 2000Hz
17, the motor drive frequency: 20KHz (no noise smoothing driven)
18, the control accuracy: 0.1 °
19, the control angle range: -45 ° ~ 45 ° (roll), -135 ° ~ 90 ° (tilt)
20, pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
21, for shooting equipment: GOPRO Hero


Related Part Number:
Head hanging hook TL68A01
GOPRO camera fasteners TL68A02
GOPRO brushless PTZ camera frame assembly TL68A03
GOPRO head roll arm TL68A04
GOPRO PTZ stand arm motor base TL68A05
GOPRO brushless motor TL68A06 PTZ
GOPRO two axes PTZ shock group TL68A07
GOPRO brushless pan rack assembly TL68A08
GOPRO head roll axis brushless motor TL68A09
GOPRO AV video output cable TL68A10
GOPRO PTZ suspension ball TL68A11
GOPRO two-axis gyroscope ZYX22 PTZ


New GOPRO two axes flew Tarot PTZ shock group TL68A12

Package Included:
GOPRO brushless pan rack assembly TL68A08 × 1
Shock absorption rubber balls x 4 (installed)
Stepping Brushless Motors x 2 (installed)
GOPRO two-axis gyroscope ZYX22 × 1 PTZ

Net Weight: 195G (without GoPro)


Specifications:
Working Voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
Working current: 200mA-500mA (power supply voltage and the motor related)
Working temperature: -15c ~ 65c
Processor: Dual 32-bit high-speed ARM core processor
Sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers
Maximum angular rate: 2000 ° / Sec
Maximum acceleration: 16g
Control frequency: 2000Hz
Motor drive frequency: 20KHz (no noise smoothing drive)
Control accuracy: 0.1 deg
Control angle range: -45Deg  ~ 45Deg (roll), -135 ° ~ 90 ° (tilt)
Power Interface: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)




Applications:

  • 330-class Quadrotors / Multicopters or above
  • 450-class helicopters or above



Note:
- this gimbal requires MANUAL ASSEMBLY. English manual is included.
- require special CF frame (NOT included) to mount this gimbal on the DJI Phantom.
- GoPro Hero3 Camera NOT included.

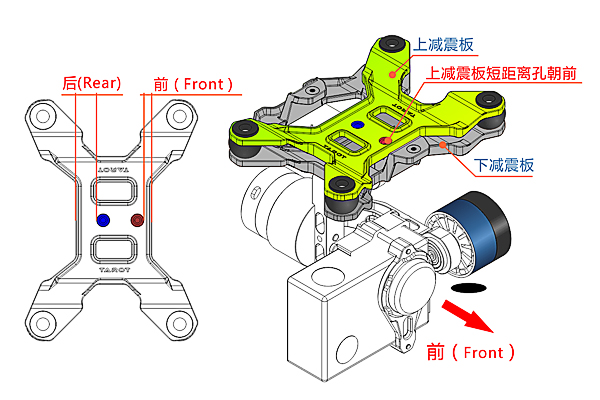

- this gimbal is pre-set to install vertically, please install it at the bottom of your aircrafts. installation on other directions may not be supported.
- to avoid shaking/vibration in the video, we suggest to reduce the gain of your Phantom using the NAZA software. 72% is recommended for ~200g gopro brushless gimbal loading.

This product was added to our catalog on Sunday, 30. June 2013.
