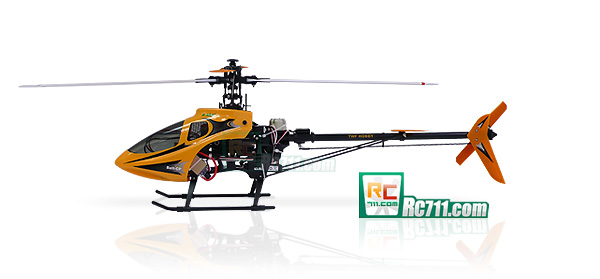

ESky Belt-CP 6-channels CCPM 3D Helicopter RTF Pack (Yellow) New Digital Servo!
(for Intermediate to Advanced Level Pilots)
Model #000010 (Old model #EK1H-E014)
Include EVERYTHING TO FLY! Now Equipped with EK2-0508 New 7.5g Digital Servo!
Products Description:
- CCPM
- Hold Rotation System
- Tail Belt Drive System
- High Efficiency Blade
- High Efficiency Tail Blade
- Rear Tail Servo Stand
- Super Iron Main Shaft
- High Rigidity Aluminum Tail Boom
- Super Iron Landing Skids
- High Strength Carbon Fiber Tail Boom Support Set
Specification:
- Main blade diameter: 680mm
- Tail blade diameter: 130mm
- Length:650mm
- Height:230mm
- Weight(Including Power System):About 670g
- Motor:400-450 brushless motor (EK5-0006)
Suggested 12-13 tooth for 400 motor,
and 10 tooth for 450 motor
- Rotate ratio:12:140/110:22
- 25A brushless speed controller (EK1-0350)
- ESKY professional gyro (EK2-0704)
- Servo: Digital Servos (7.5g,1.0kg.CM, 0.10s/60°) NEW!
- Tail rotor drive Belt System
Package included :
-
- 1 x Helicopter Body, All Electronics Installed, Ready-to-Fly
- 1 x 3800KV brushless motor (EK5-0006)
- 1 x 25A brushless speed controller (EK1-0350)
- 1 x ESky professional gyro (EK2-0704)
- 4 x 7.5g Digital Servo (EK2-0508) NEW!
- 1 x ESky 6-channels PPM / CCPM Transmitter (EK2-0406A)
- 1 x ESky 6-channels CCPM Receiver (EK2-0420A)
- 1 x ESky 1800mAh 20C Li-Po Battery (EK1-0186)
- 1 x 7.4V & 11.2V Li-Polymer Battery Charger (EK2-0851)
- 1 x 100-240V AC Switching Adapter (EU, US/JP, UK, AU) We will choose the correct one for your country!
- 1 x Colourful English & Chinese Manual (incl. spare parts list) for RC Helicopter
We also provide FULL SPARE PARTS support for ESky Belt CP!!
Note:
- If you choose to change to the EK2-0704B headlock gyro (original EK2-0704 gyro will be removed). The setup for EK2-0704B is different from EK2-0704A, please click here to see the setup for EK2-0704B.
- Please watch below some very helpful DIY videos to tell you how to setup your Honey Bee King 2 (Belt-CP is similar):
|
